Cloudplast
Wiring Tape 8025
Wiring Tape 8025
Regular price
$2.50 USD
Regular price
$15.00 USD
Sale price
$2.50 USD
Unit price
per
Couldn't load pickup availability
Product description

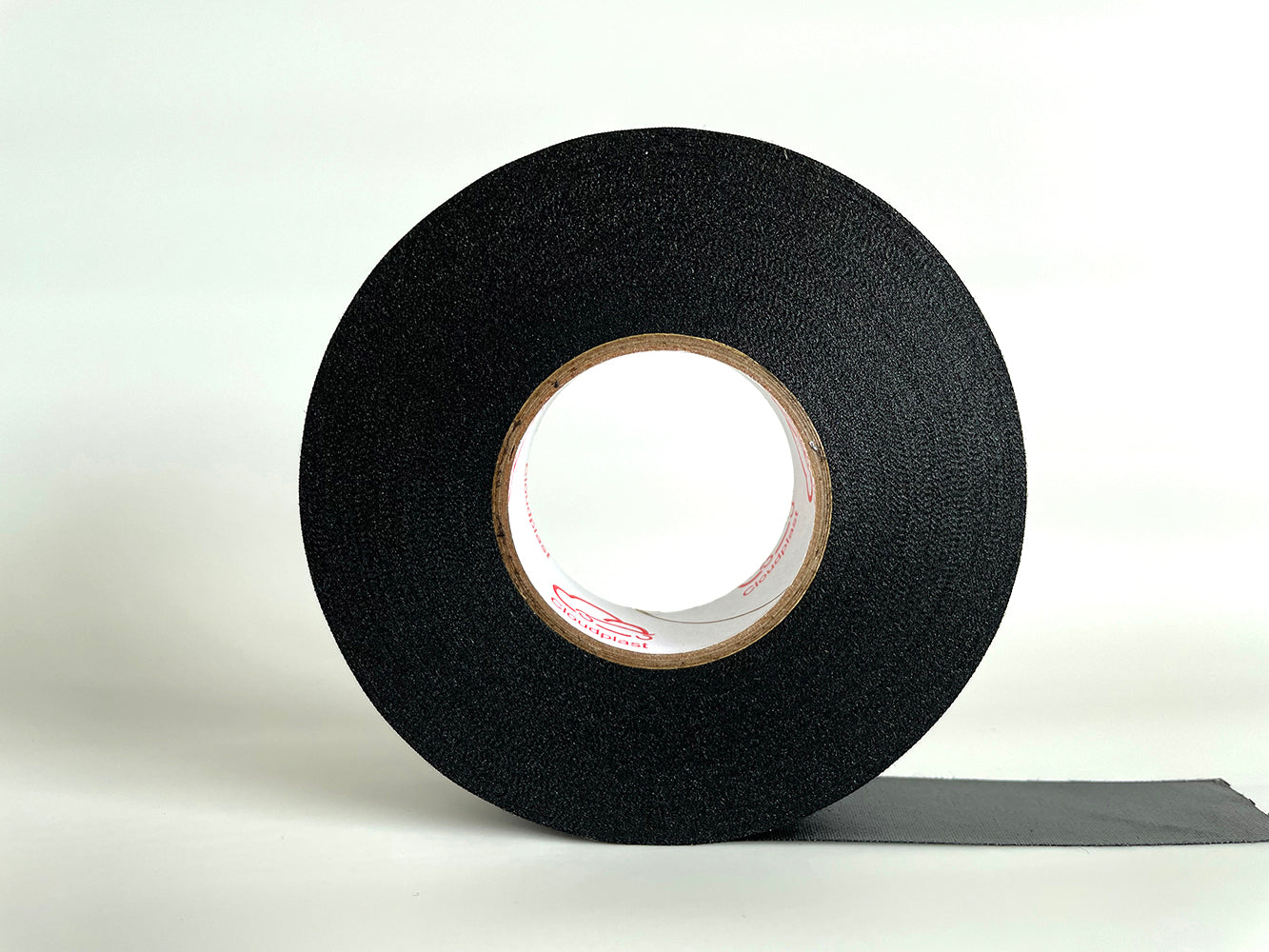

Cloudplast 8025 is a hand-tearable PET cloth tape with a solvent-free synthetic rubber adhesive. It is one of the most popular tapes and with the hand-tearability and common abrasion resistance that used in passenger part and some truck main wire harnesses. With the solvent-free formula, Cloudplast 8025 is a low-VOCs adhesive tape and excellent easy to use properties.
| Model No. | Cloudplast 8025 |
| Name | PET Cloth Tape |
| Type | Wire Harness Tape |
| Backing / Carrier | PET cloth |
| Adhesive | advanced hot melt / synthetic rubber |
| Operation Temperature | -40ºC-125ºC |
| Color | Black / Orange (similar to RAL2003) Other sizes and colors are available on request |
| Standard sizes |
Width: 19mm, 25mm Length: 25m Core ID: 38mm |
Product features
- Light weight, but solid and smooth surface
- Low VOCs
- High temperature stability
- Flexible and hand-terable
- Excellent chemical resistance
- Suitable for machine processing as well as for hand application
Product Parameters
| Thickness （mm） | 0.15±0.02 |
| Tensile strength （N/cm） | > 60 |
| Elongation at break （%） | > 10 |
| Adhesion to steel （N/cm） | > 2.5 |
| Adhesion to backing （N/cm） | > 2.5 |
| Unwinding force range （N/roll） | 2.0 ~ 9.0 |
| Flame resistance | B(self-extinguishing) |
| Abrasion resistance | A: (0 ~ 100) |
| Noise damping 「dB(A)」 | A: 0 ~ 2 |
* These details are to the best of our knowledge, nevertheless without guarantee. The suitability for special applications should first be tested by the user. The given values are statistical averages.
Application Fields
Cloudplast 8025 designed for bundling and wire protection for most common use, main application field is the passenger compartment.
