Product description

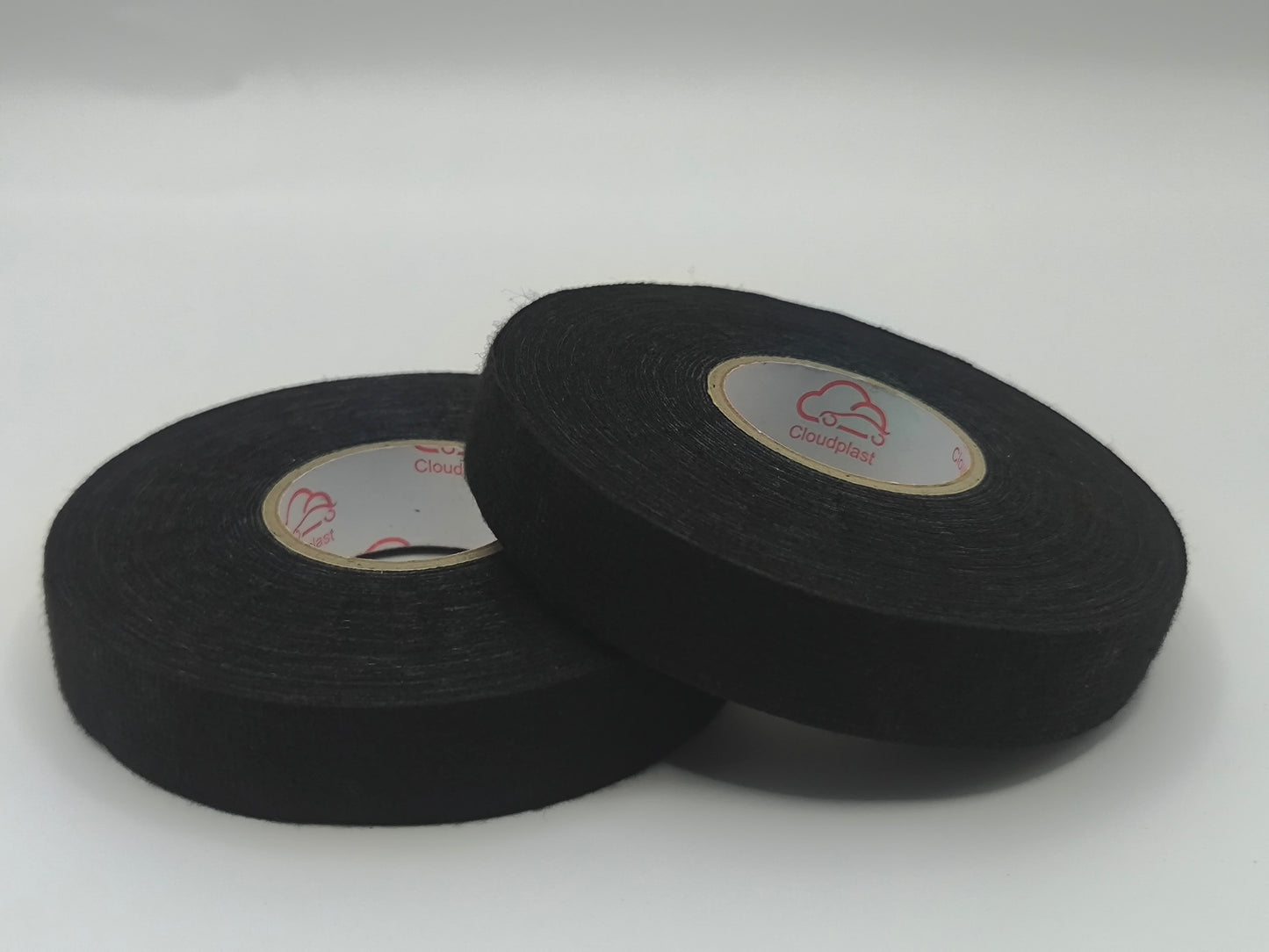

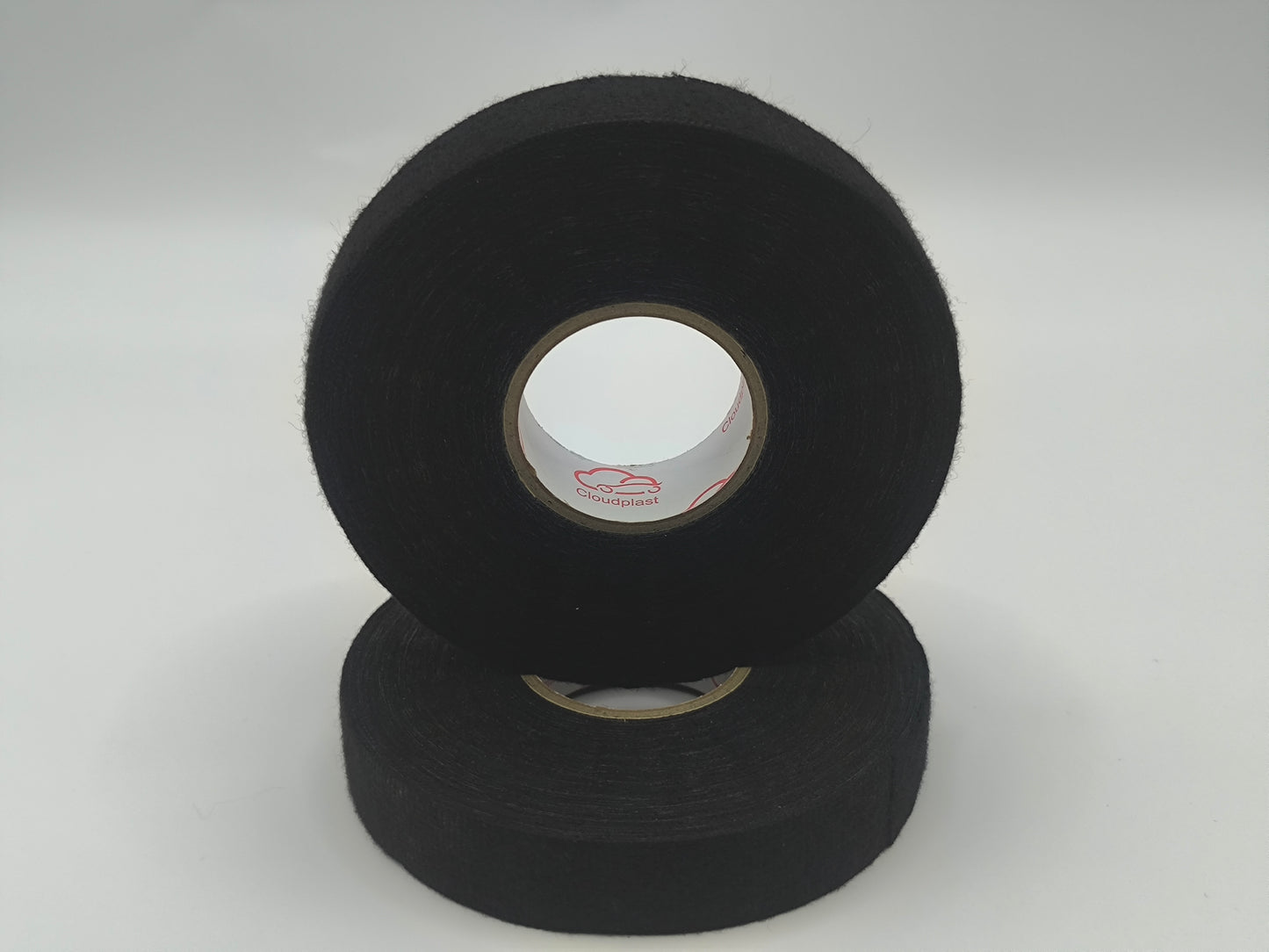

Cloudplast 8608 is a common abrasion protection PET fleece tape with synthetic rubber adhesive. It is one of the most popular automotive wire harnesses tapes that used in passenger part. Cloudplast 8608 is a low-VOCs adhesive tape and has high flag resistant properties.
Model No. | Cloudplast 8608 |
Name | PET non-woven Tape |
Type | Wire Harness Tape |
Backing / Carrier | PET nonwoven |
Adhesive | hot melt / synthetic rubber |
Operation Temperature | -40ºC-105ºC |
Color | Black (Other sizes and colors are available on request) |
Standard sizes |
Width: 10mm, 19mm, 25mm Length: 20m / 25m Core ID: 38mm |
Product features
- Hand tearable
- High noise damping effect
- High adhesion
- Low VOCs
- Risistant to aging
- High temperature stability
Product Parameters
Thickness (mm) | 0.35±0.05 |
Tensile strength (N/cm) | > 30 |
Elongation at break (%) | > 10 |
Adhesion to steel (N/cm) | > 2 |
Adhesion to backing (N/cm) | > 2 |
Unwinding force range(N/roll) | 2.0 ~ 9.0 |
Flame resistance | B(self-extinguishing) |
Abrasion resistance | B: (100 ~ 499) |
Noise damping 「dB(A)」 | C |
* These details are to the best of our knowledge, nevertheless without guarantee. The suitability for special applications should first be tested by the user. The given values are statistical averages.
Application Fields
Cloudplast 8608 designed for bundling and wire protection against abrasion and high temperature, main application field is the passenger part.
